Waterproof Energy Saving LED Display , Outdoor Stage Led Screens RGB 3 In 1 4200Hz

Product Categories
Shenzhen Vios Electronic Technology Co., Ltd
Contact Now

Waterproof Energy Saving LED Display , Outdoor Stage Led Screens RGB 3 In 1 4200Hz

Brand Name : Vios

Model Number : P8

Certification : CE/ROHS/FCC/SGS

Place of Origin : China

MOQ : 10pcs

Price : negotiation

Payment Terms : T/T; WU, LC

Supply Ability : 5000 square per month

Delivery Time : 7works days

Packaging Details : Packed in carton or wooden packing Flight case

Pixel Configuration : RGB 3 In 1

Pixel Density/pixels/m : 15625/m²

Refresh Frequency : >4200Hz

Scanning Mode : 1/8

Lamp Size : SMD3535

Module Size/mm : 256x128

Contact Now


Great Waterproof Energy Saving Outdoor Stage Led Screens led stage display screen

Specifications

1.Supply to USA,Europe,and Austrilia
2. Nation star /Kinglight LED Lamp
3.Professional Perfomance Auto parts supplier
4.NOVA STRA super quality Controller

Energy saving

1.Power consumption: save as much as to 60% , with Special designed circuit PCB, High brightness LED lamp and MBI5035 High efficiency Driving IC.

2.Adopt Low working voltage to reduce electromagnetic interference, with double circuit 2.5V & 3.3V for Modules and Control system.


Product specification

SMD P8
Lamp size 3535
Resolution/mm 8
Pixel configuration RGB 3 in 1
Pixel density/pixels/m² 15625/m²
Module resolution 32x16
Module size/mm 256x128
View distance ≥7m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >8000cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Signal Process bit 10 or 14 bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:5km
Driving mode Constant driving current
Scanning mode 1/8
Frame rate 60Hz
Refresh frequency >4200Hz
Control mode Computer synchronous
Brightness adjusted range Manual, automatic operation, stepless continuous adjusted
255 steps. No grey loss
Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃ Storing temperature range: -30-65℃
Maximum power:/㎡ <1000W
Average power:/㎡ <280W
Self-check technology LED spot self-check, communications check, power check,
temperature monitor(need customization)
Remote monitoring Remote supervision and control, record potential fault,
send out warning signs to the operators.(need customization)
Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%

Waterproof Energy Saving LED Display , Outdoor Stage Led Screens RGB 3 In 1 4200Hz

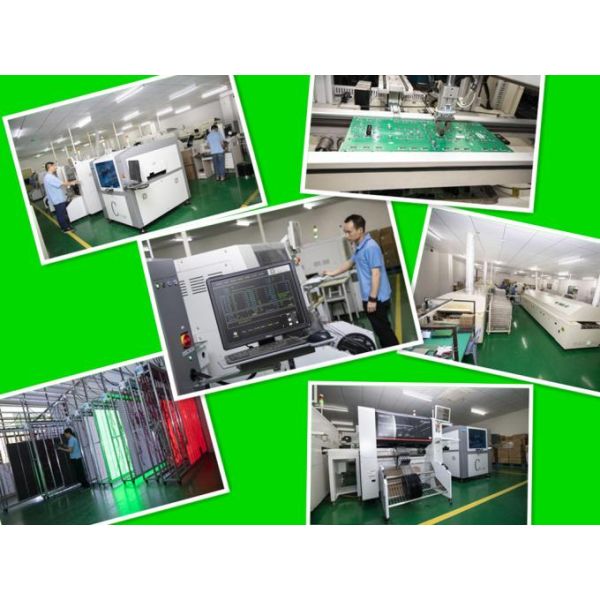

Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
Waterproof Energy Saving LED Display , Outdoor Stage Led Screens RGB 3 In 1 4200Hz
Features
1. Seamless --- precision cabinet, light weight and more durable.
2. Quality LEDs --- with wide viewing angle to ensure vivid and sharp images and video.
3. High refresh rate and high gray scale --- to ensure color consistency and better images


Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
